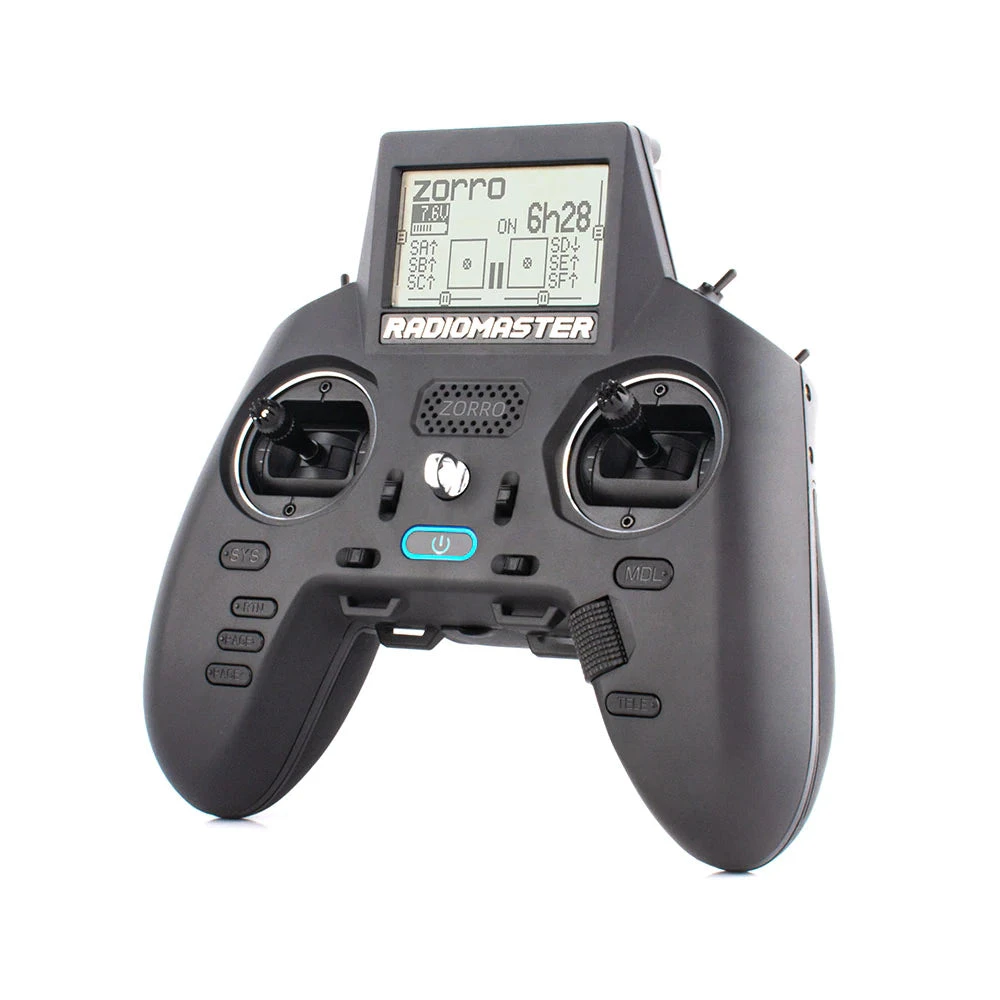

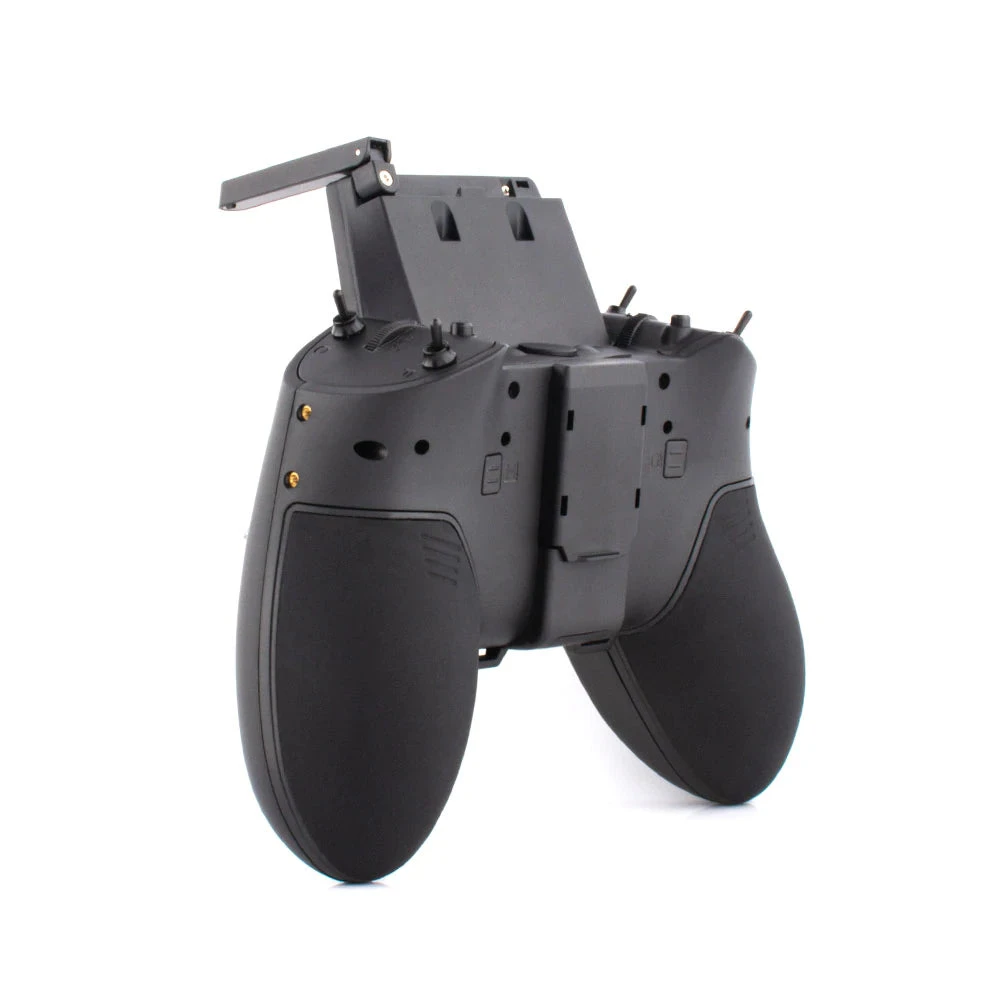

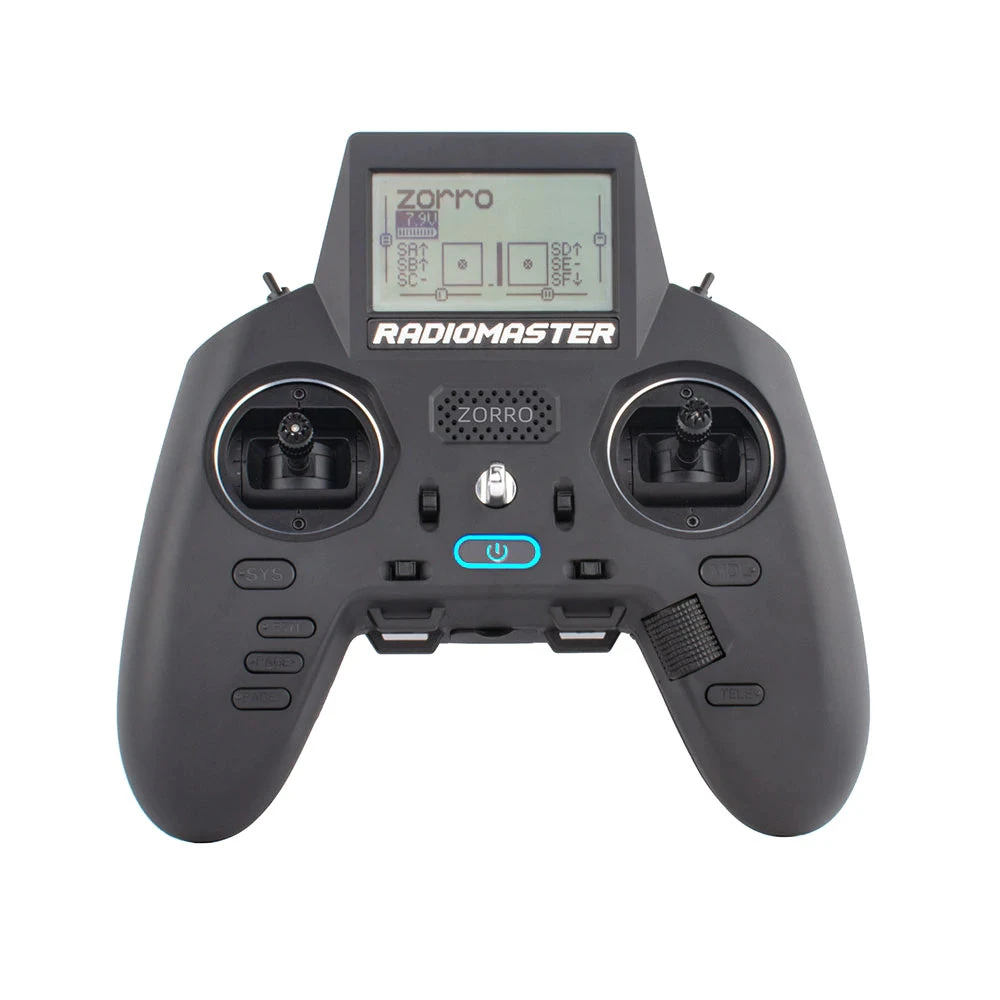

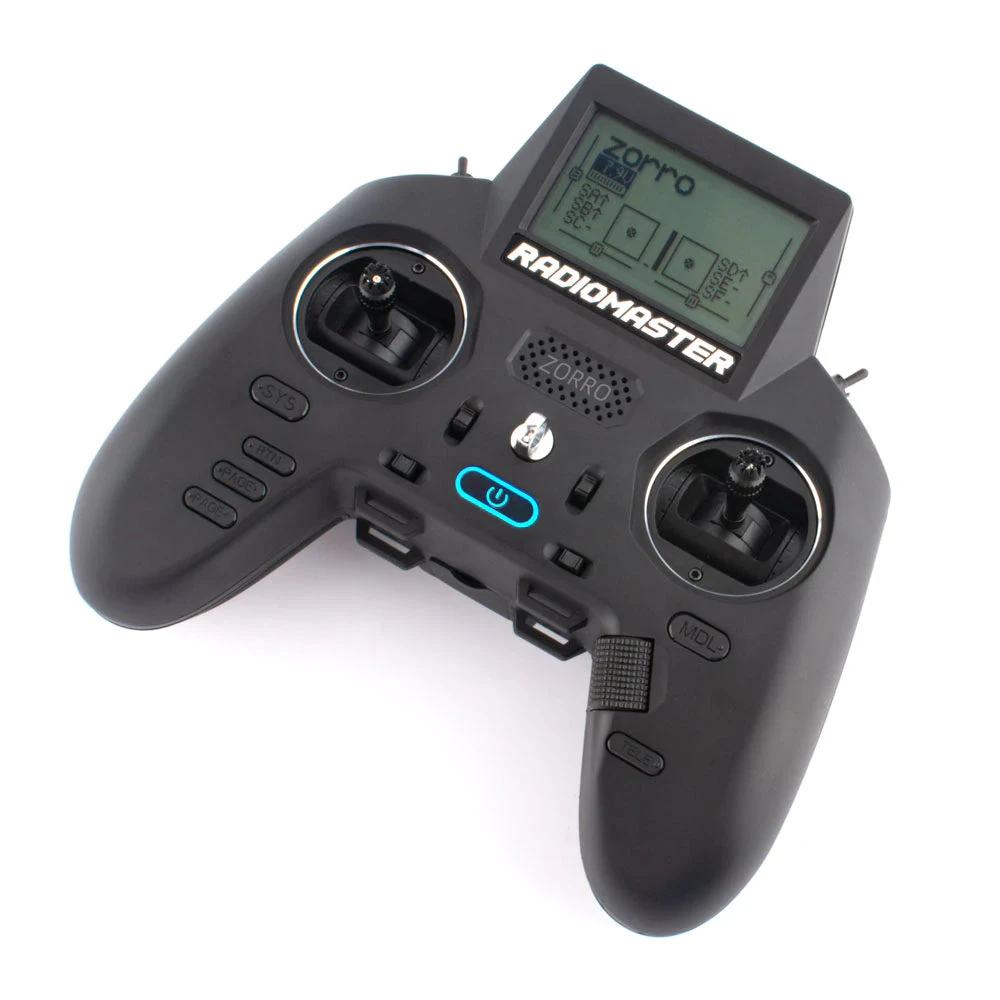

Zorro EdgeTX Radio Controller – 4in1 Or ELRS

Featuring an ergonomic design, a large bright LCD screen in the perfect viewing position, travel adjustable HALL sensor gimbals, a nano size external RF module bay, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again. Choose between the 4-in-1 and ELRS TX Module.

Features

• Supports OpenTX and EDGETX
• Configurable for mode 1 or 2
• Adjustable hall gimbals
• External nano module bay
• USB-C Charging
• Supports internal 18350 batteries, and external 2s power
• Foldable antenna for easy travel
• Mounting points for aftermarket attachments

Specifications

• Display: 128×64 Monochrome LCD
• Gimbal Type: Hall-Effect Sensor
• RF Module: 4-In-1
• External Module Bay: Nono Size
• Supported Battery: 2 x 18350 (not Included)
• RF Power: 20dB Maximum (4in1) / 250mw (ELRS)
• Antenna gain: 2dB
• Charging Port: USB-C
• Operating Voltage: 6.6-8.4V
• Firmware: OpenTX
• Maximum channels: 16 (RX dependent)
• Operating  Frequency: 2.5-2.48GHz
• Dimensions: 170x159x108mm
• Weight: 350g
• TX Module Choice
• 4in1 (FrSky, DSMX, DSM, FlySky, Futaba, ect)
• ELRS

Includes

• 1x Zorro Radio with 4-IN-1 RF Module

Find the user manual HERE
