X-Air 5.8 MKII & Stubby Antenna Set For Dominator HD Goggles

TrueRC’s high-efficiency X-AIR MK II with direct RP-SMA connectors for installing on the Fat Shark Dominator HD or Walksnail Avatar FPV goggles. Simply screw on the custom knurled RP-SMA connectors on the front ports* of the goggles. Great 10dBic gain combined with a healthy flyable beam width of 120deg, yield an amazing flight experience in a compact and low profile package. Fill the remaining ports with the included singularity stubby and you got the antennas full house!

Check out all our

Dominator HD gear

!

Features

• Circularly Polarized
• Mount direct on Walksnail Avatar or Fat Shark Dominator HD
• Compact low-profile design, easy to store and transport
• High 10 dBic for long-range and signal penetration
• Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
• Super wide 120-degree beam
• Custom knurled RP-SMA connectors

Specifications

• Bandwidth: 5.1GHz-6.7GHz
• Gain: 9.5-10.5 dBic
• Polarization: LHCP
• Beam-width: 120deg
• Beam-width @-3dB: 68deg.
• Connector: RP-SMA male
• Dimension: 32x32x16mm

Coverage of individual antenna where reception is at least equivalent to an omni.
Coverage of individual antenna where at least 70% of the max range is obtained.

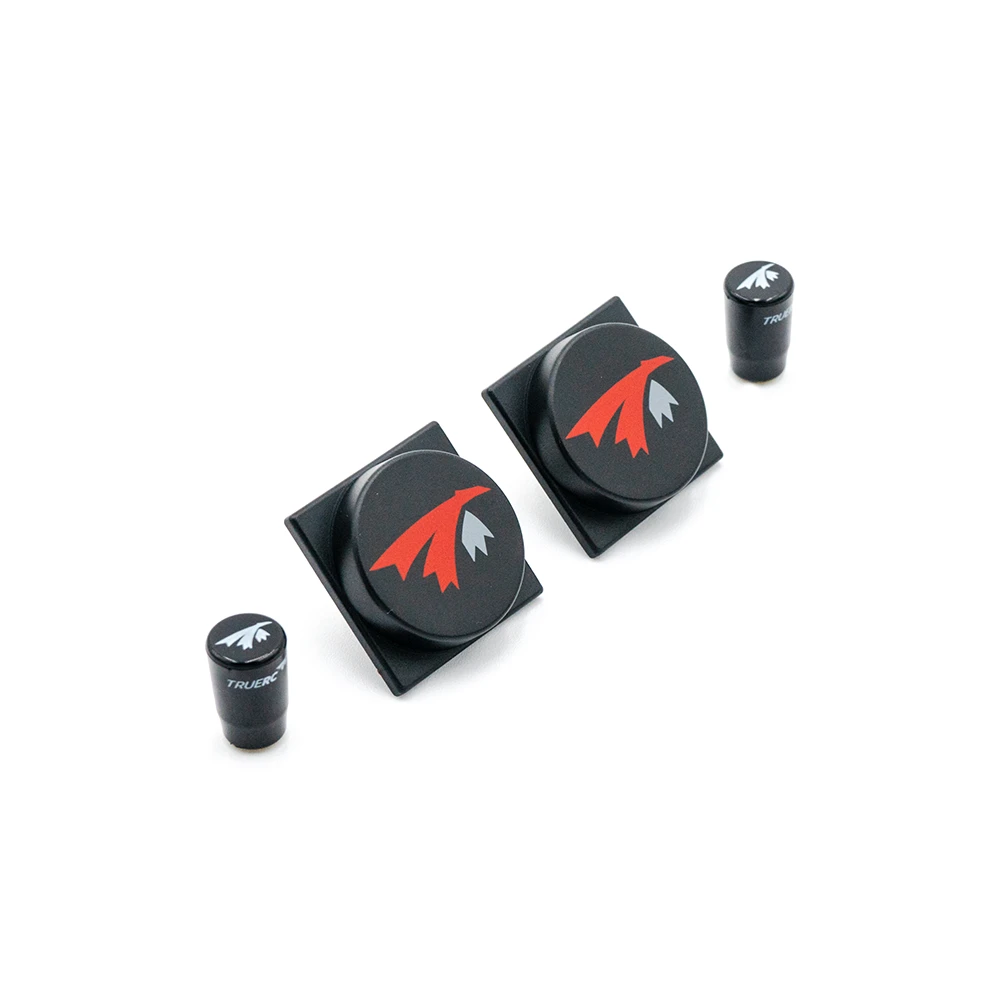

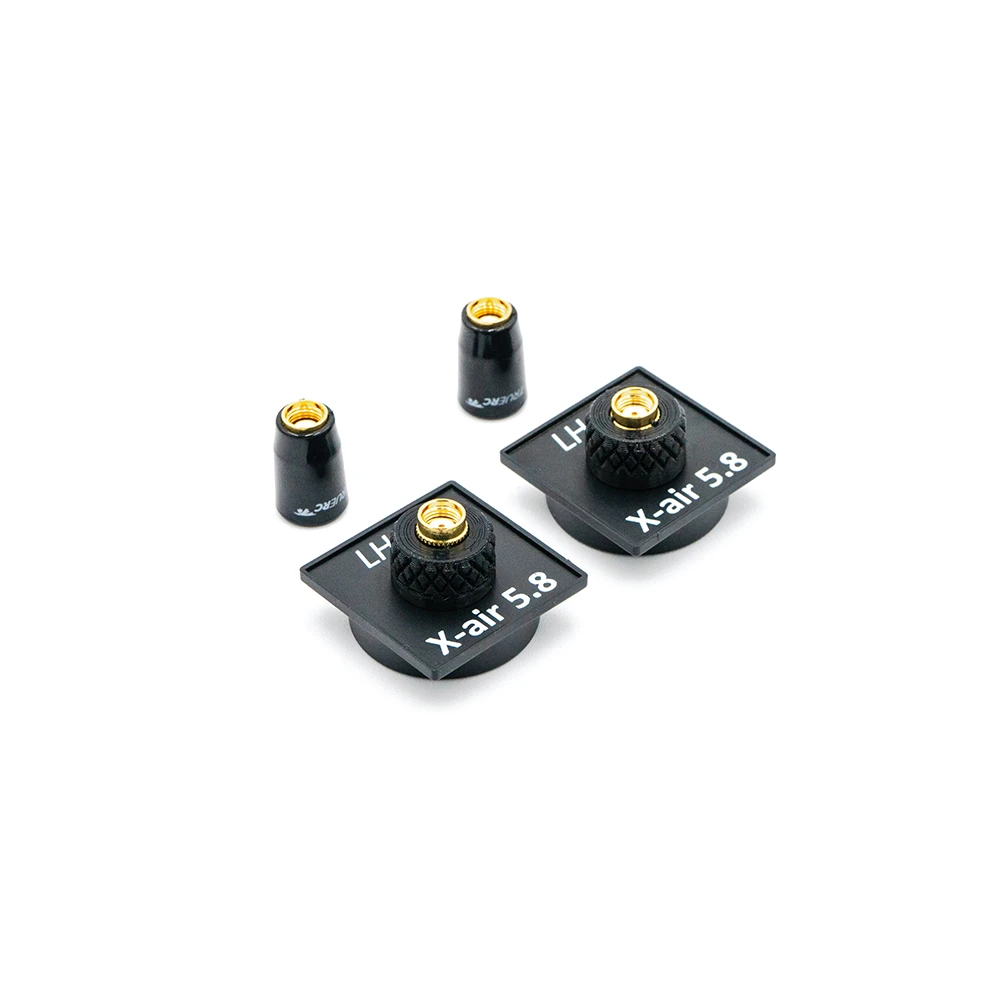

Includes

• 2x X-Air MKII Antennas
• 2x Singularity Stubby
