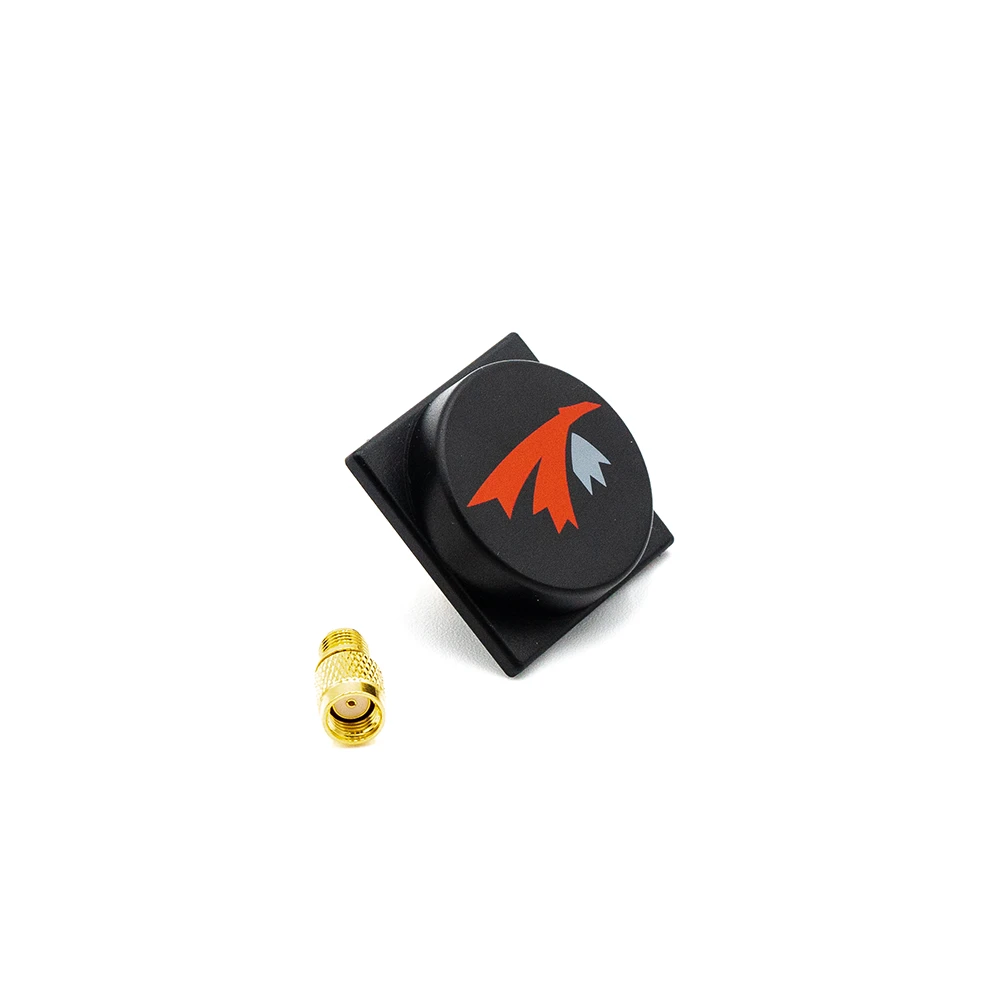

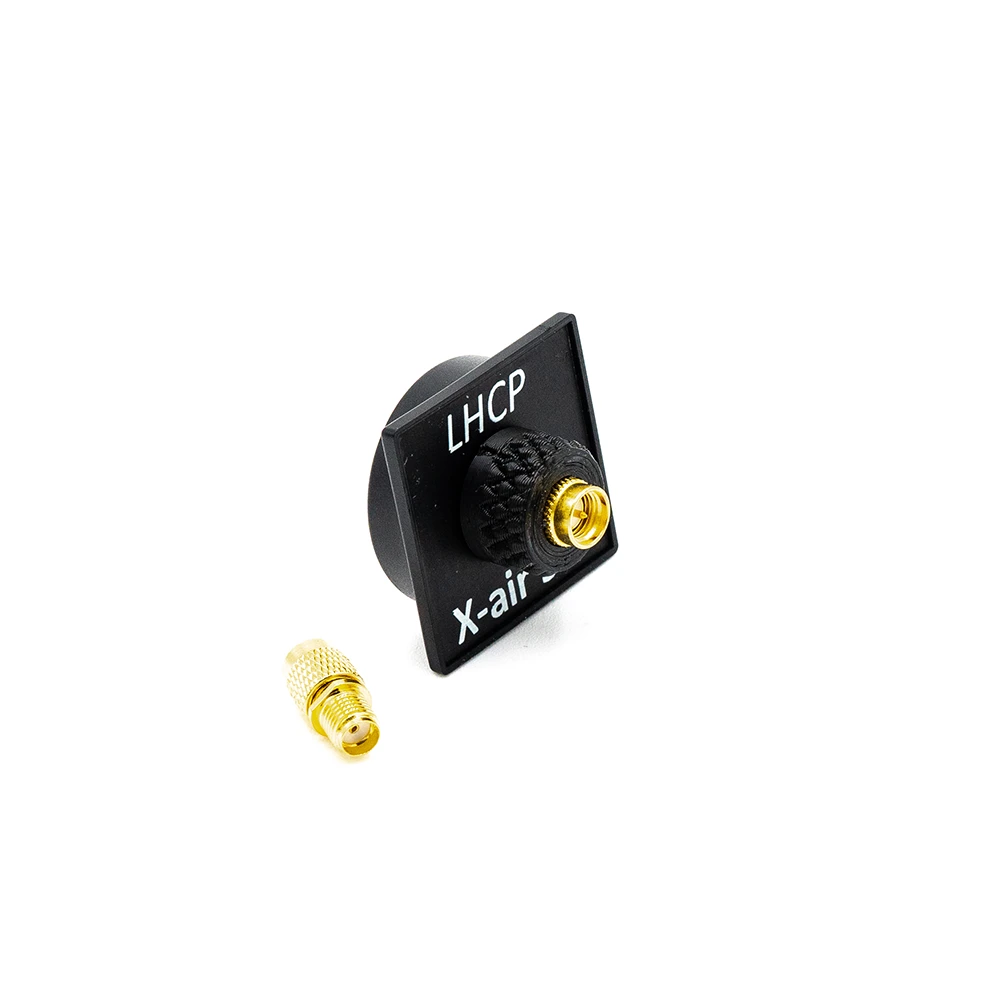

X-Air 5.8 MKII LHCP Antenna

The X-AIR 5.8 Mk II is TrueRC’s latest redesign of the X-AIR 5.8 antenna. Featuring aerospace-grade PCB material and the latest computer-aided engineering, there’s no compromise in beam width or gain and now size! Almost 1/4 of the footprint of the original, the same wide coverage, and a high axial ratio make it perfect for far-off ventures without antenna aiming adjustment.

Perfect for the

Dominator HD Goggles

 forward facing plugs using the included RP-SMA adapter. For DJI Goggles we recommend using

45 degree RP-SMA adapters

.

Specifications

• Bandwidth: 5.1GHz-6.7GHz
• Gain: 9.5-10.5 dBic
• Polarization: LHCP
• Beam-width: 120deg
• Beam-width @-3dB: 68deg.
• Connector: SMA male
• Dimension: 32x32x16mm
• Includes low loss RP-SMA adapter

Includes

• 1x X-Air 5.8 MKII Antenna – LHCP
• 1x RP-SMA Adapter
