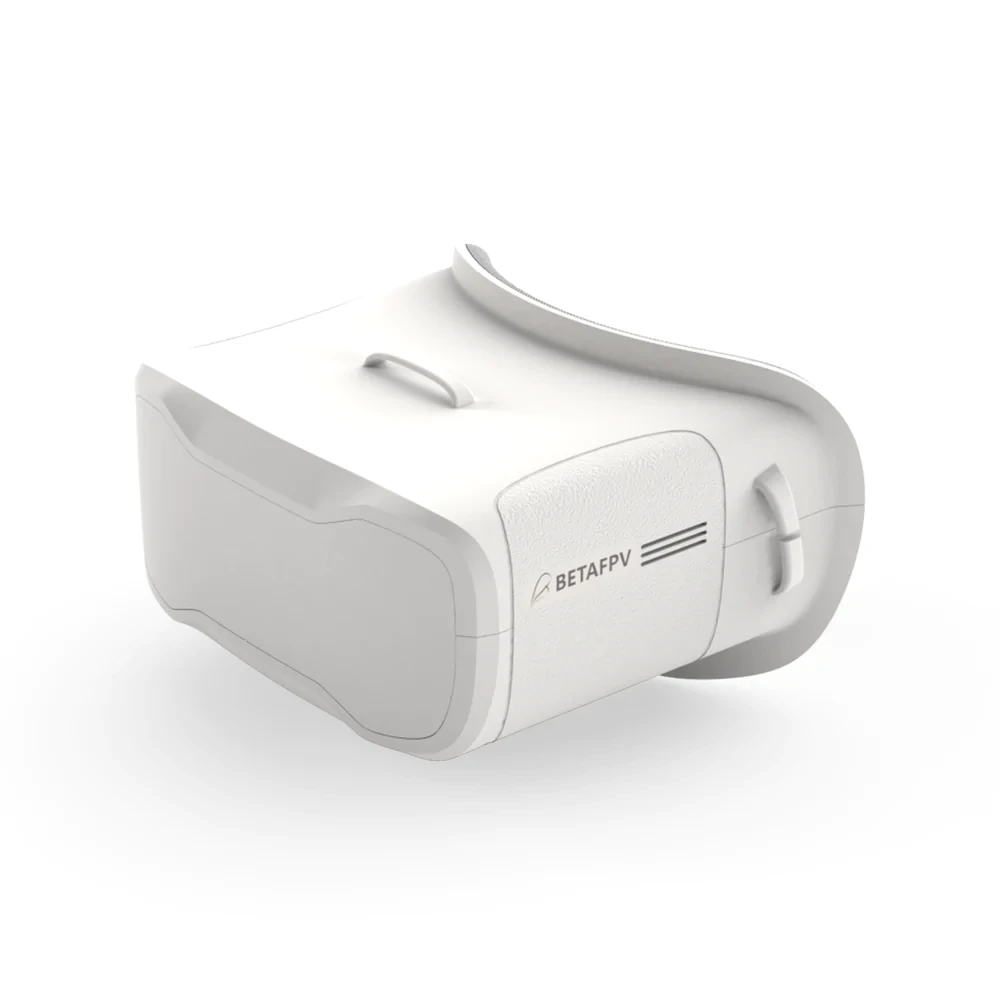

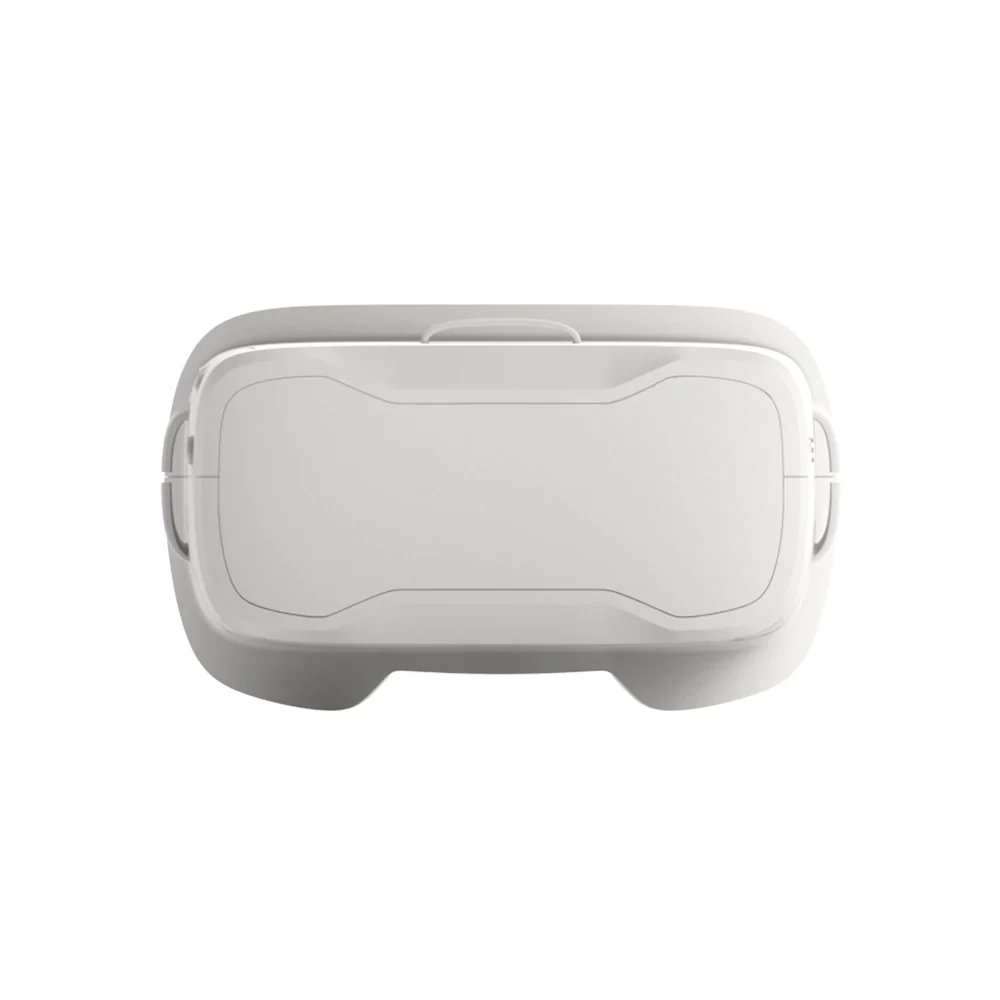

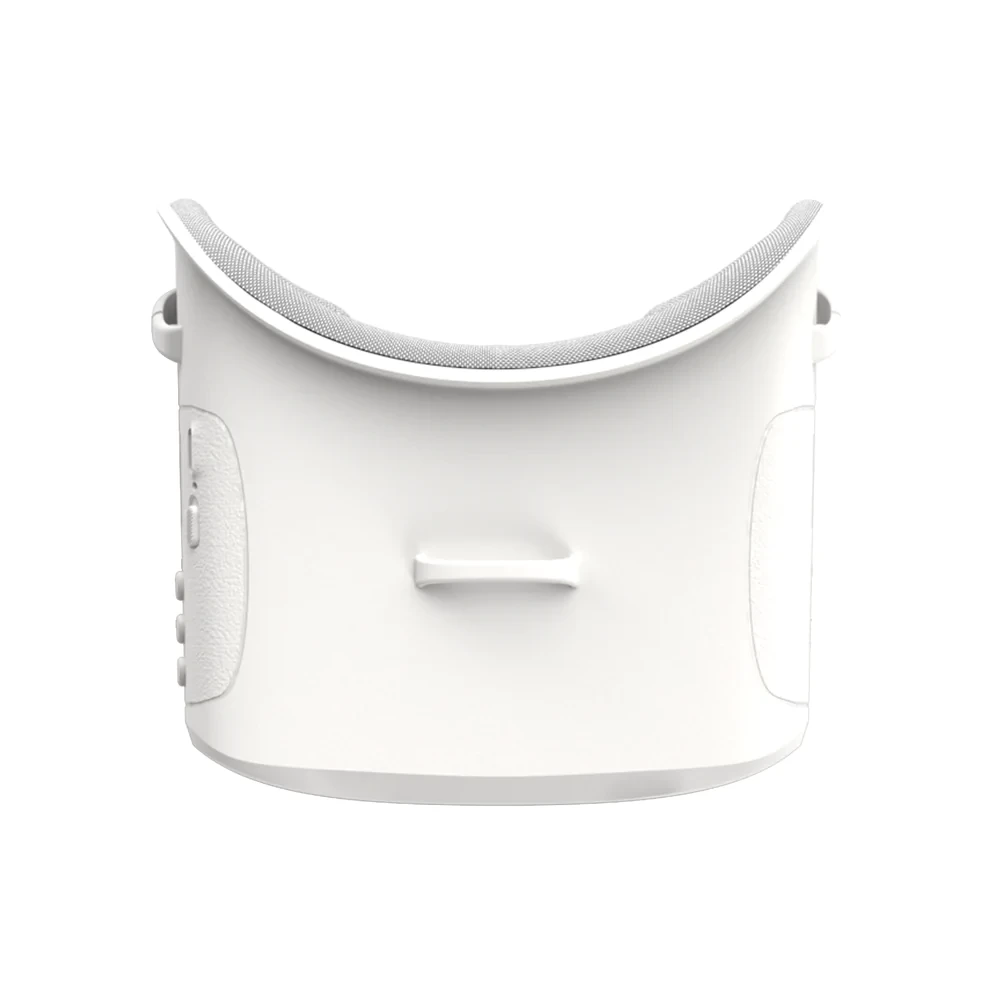

VR02 FPV Goggles

With integrated antennas and battery, the BetaFPV VR02 is an excellent lightweight, streamlined and affordable option for analog FPV!

Check out all our FPV Goggles

!

Features

• With built-in antennas and patented structural design, the VR02 Goggles is more compact, refined, lightweight and comfortable for wearing and carrying.
• VR02 goggle comes with high-quality built-in 5.8GHz 14 DBI antennas, you can receive stable and clear images even for long-range flights.
• Bright 4.3″ 800×480 px LCD, VR02 Goggles will show you a bright image specially tuned for FPV quads & wings, without warped or blurred images!
• Upgraded frequency sweep function and fast frequency auto-search function(only 2.5 seconds). Pilots can easily find a band and channel with a stronger signal for a better flight experience.
• The advanced auto-searching function will show you the working frequency on the screen vividly.
• Ergonomic design with foam sponge faceplate and a three-sided adjustable headband, this FPV Goggle fits your face and head perfectly.

Specifications

• Body
• Dimension: 126x143x86.3mm
• Weight: 300g with 2hr 2000mAh battery
• Belt: Three-Ways adjustable belt
• Screen
• Size: 4.3 inch
• Resolution: 800*480 px
• Brightness: 300cd/m2
• View Angle: 55°
• Input
• Charging: USB Type-C
• Voltage: 3.7V, the device operating current of [email protected]
• Current: 500mA
• Battery
• Built-in 3.7V/2000mAh high-capacity polymer battery
• LED turn on while charging. When charging is completed, the LED will turn off. Each full charge revive is around 2 hours working time.

Includes

• 1x BetaFPV VR02 FPV Goggles
• 1x Adjustable Headband

BETAFPV Patented Design

With the built-in antennas and the special design of the Goggles lens, the VR02 Goggles is more compact and exquisite, which makes it maintains a small and lightweight body.

Operation Instructions

Band and Channel Selection

• BETAFPV VR02 FPV Goggles has a frequency sweep function and a fast frequency auto-search function, it will help pilots find a stronger Band to get a better flight experience.
• The frequency sweep function can display the occupancy status of each channel in the current space so that pilots can fly with a better Band and enhance the flight experience.

How to use the frequency sweep function?

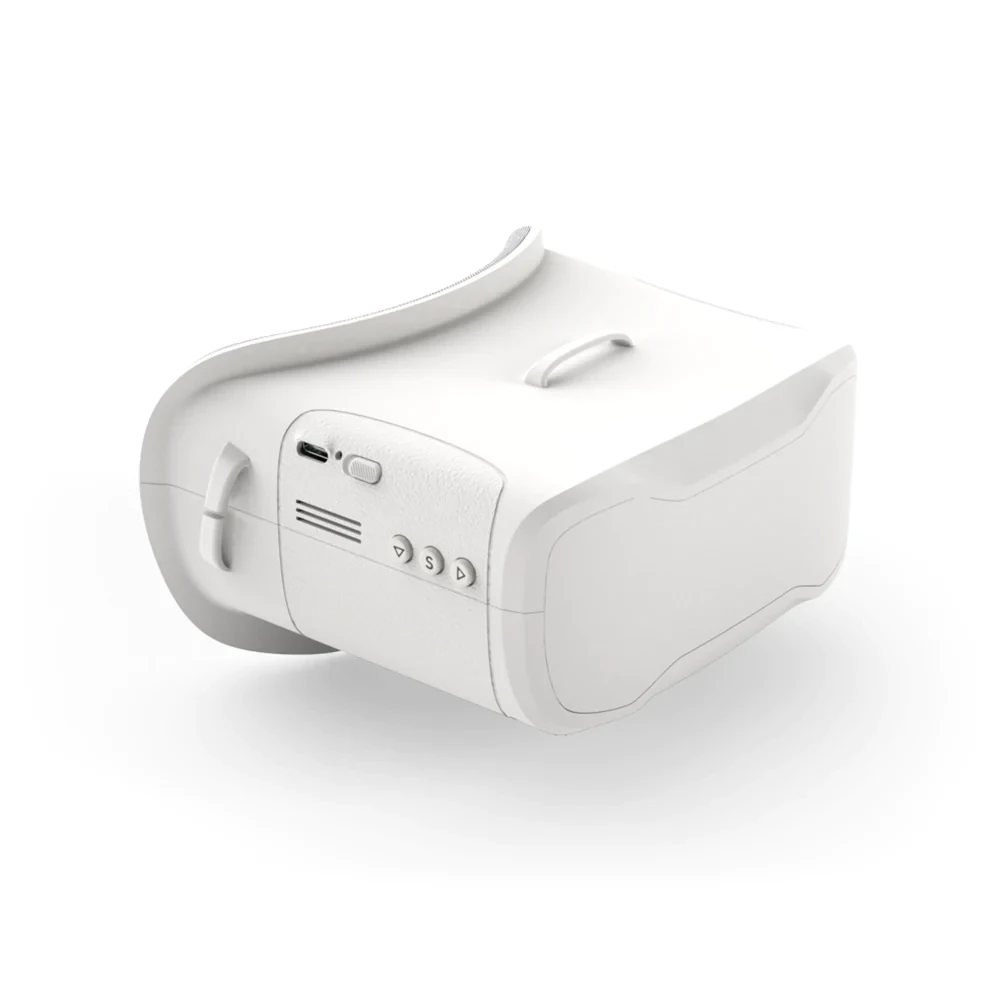

After powering on, short press the “S” button to enter the sweeping interface, as shown below. Pilots can change the Band via the “Band+” and “Ch+” buttons.

Band Status Indicator

How to use the fast frequency search function?

After powering on, press and hold the “S” button for 1 second to start the frequency auto-search. The frequency auto-search process is 2.5 seconds. After the frequency auto-search is over, it will beep twice and jump to the corresponding Band of the drone.
