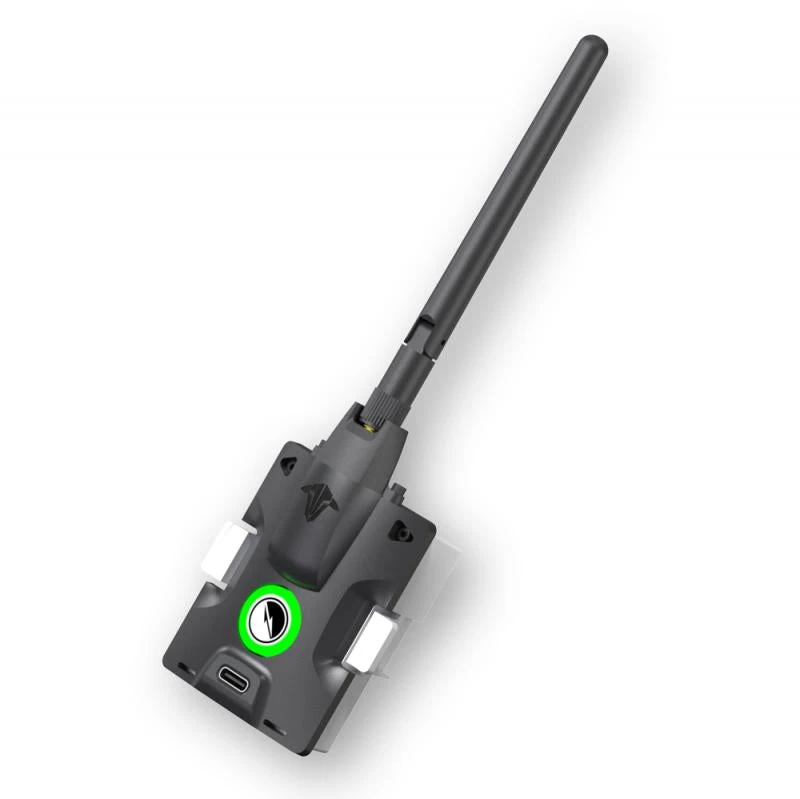

Tracer 100mW 2.4GHz Micro TX Module

In a race, microseconds count. Goggles down, thumbs up – are you ready for a true 250Hz radio link? End-to-end latency: barely noticeable. Nothing else comes close! Thanks to 2.4GHz technology, we took the best from Crossfire and shrunk it down to speed it up. The end result: Smaller antennas, more speed, and range for days.

This is a perfect match for the

Tracer Nano receiver

Features

• 250Hz: Fastest available radio and telemetry link
• Brand new 2.4GHz technology not found in any other radio link
• 3ms end-to-end latency
• Crossfire engine for ultimate compatibility and functionality
• For JR form factor transmitters
• Nano-sized receiver with antenna diversity
• 15mi+/25km+ range
• For drones, planes, helicopters, cars, and boats

Specifications

• Latency & Refresh Rate: 3ms, 250Hz
• Output power: 25mW / 100mW
• Frequency Bands: 2.4GHz ISM
• Input Voltage: 5V – 3V
• Connector: USB-C
• Power consumption: 1.1W (@10mW) – 2W (@100mW)
• Dimensions: 65 x 48 x 22 mm (JR module size)
• Radio Compatibility: JR module bay (e.g. TBS Tango 1, RadioMaster TX16S, Taranis X9D). OpenTX V2.1+

Includes

• 1x Tracer 100mW 2.4GHz Micro TX Module
• 1x Antenna
