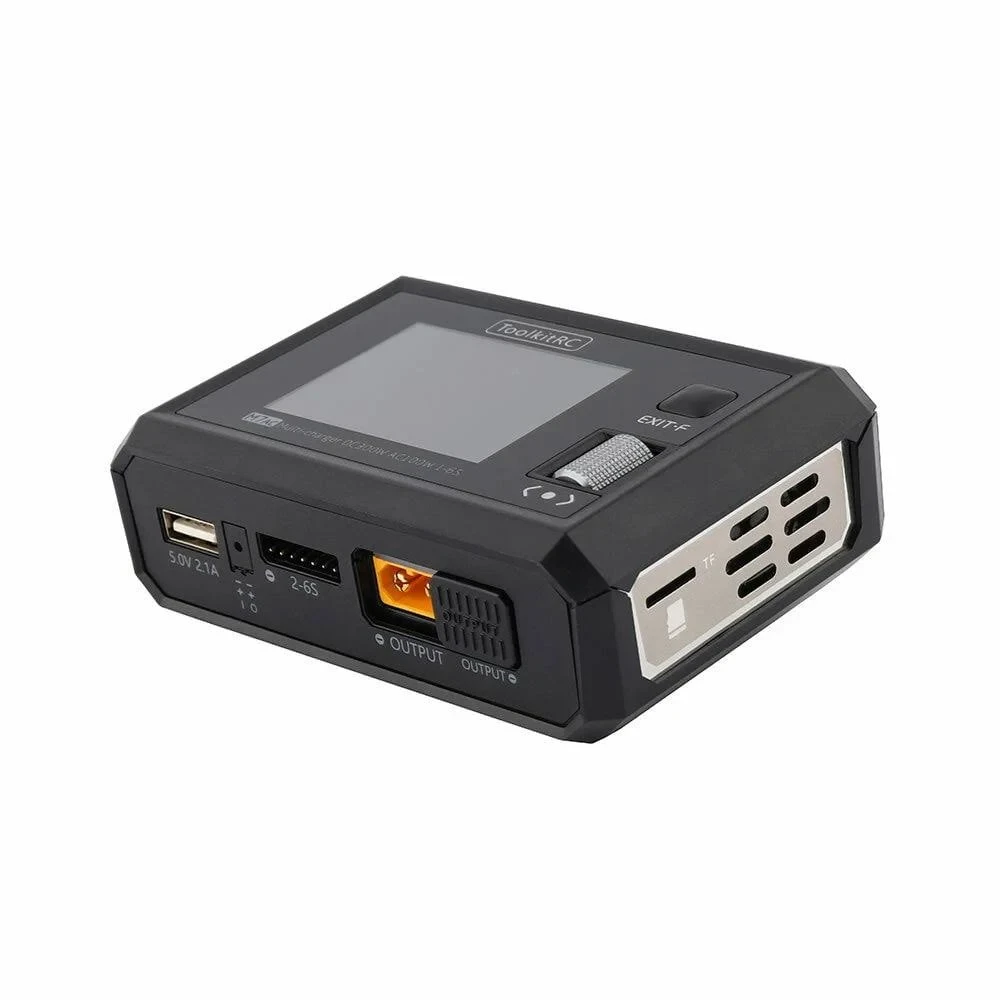

M7AC 300W 1-6S AC/DC Smart Charger With XT30 & XT60

The M7AC features both an integrated 100W AC power supply and DC power input, XT30 & XT60 charging outputs, customizable voice alerts and much more. The M7AC also has all the multifuntionality you expect from a ToolkitRC charger, including multimeter, signal measurement, signal generation and adjustable power supply output.

Features

• Integrated AC power supply

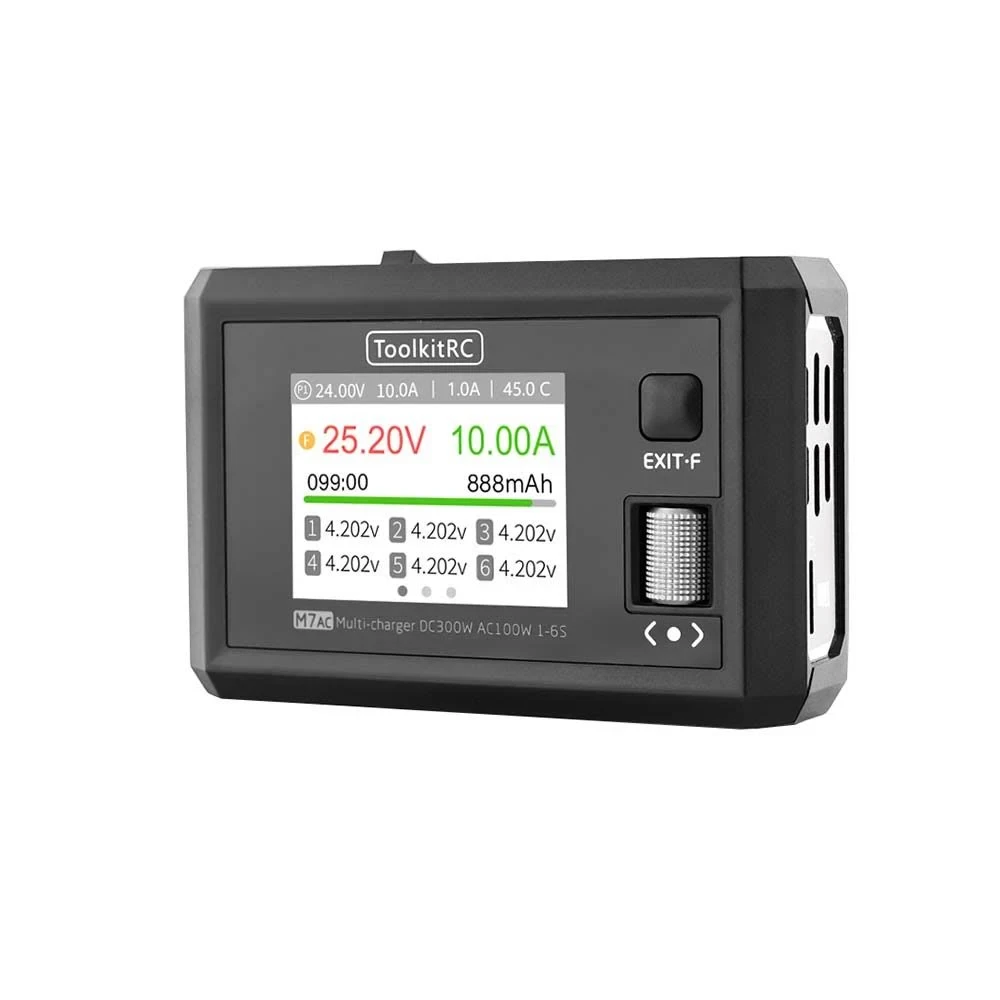

• Bright 2.4″ 320×240 IPS wide angle display
• Long life scroll wheel sensor
• New simplified interface
• 10W USB output
• SD Slot
• Small size, many functions:
• Balance charge
• Electrical measurement
• Signal source
• Drone charge
• Signal testing

Specifications

Charger

• Input Voltage:
• AC 100-240V MAX 100W 1.5A
• DC 7.0-28.0V @MAX 20A
• Battery Type: Lipo LiHV LiFe Lion LTO@1-6S, NiMh @1-16S Pb @1-10S
• Balance current: 800mA @ 4.2V
• Charger power: 300W @MAX 15A
• Discharge power: 300W @MAX 15A Recycle mode, 15W@3A Normal mode
• USB: [email protected] or Upgrade

Measurement

• PWM: 880-2200us @20-400Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Voltage: 1.0-5.0V @1-6S
• Internal resistance: 0.1-99mR @1-6S
• ESC: 300W@15A

Output

• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @20-50Hz
• SBUS: 880-2200us*16CH @20-100Hz
• Power supply: 1.0-28.0V @1.0-15A mode:CC+CV
• OverCurrent Cutoff time: <5ms

Includes

• 1x M7AC 300W 1-6S AC/DC Smart Charger
