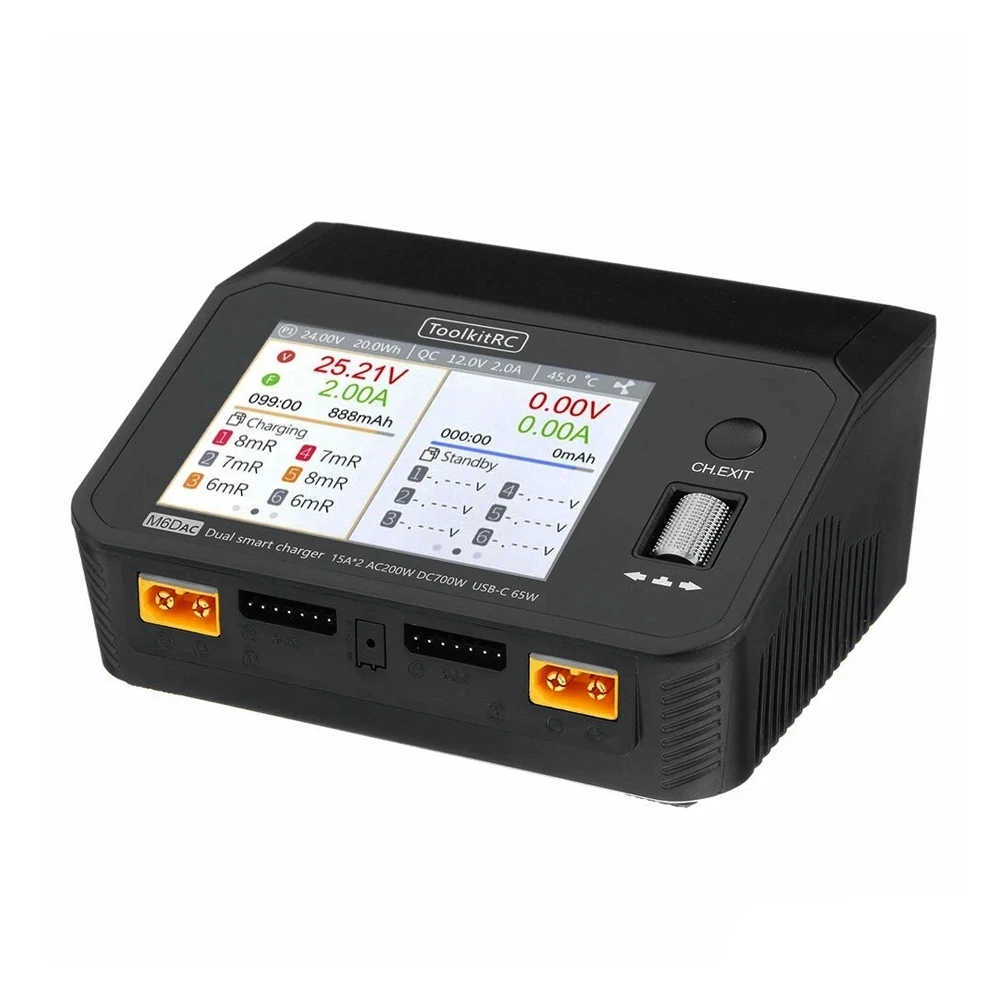

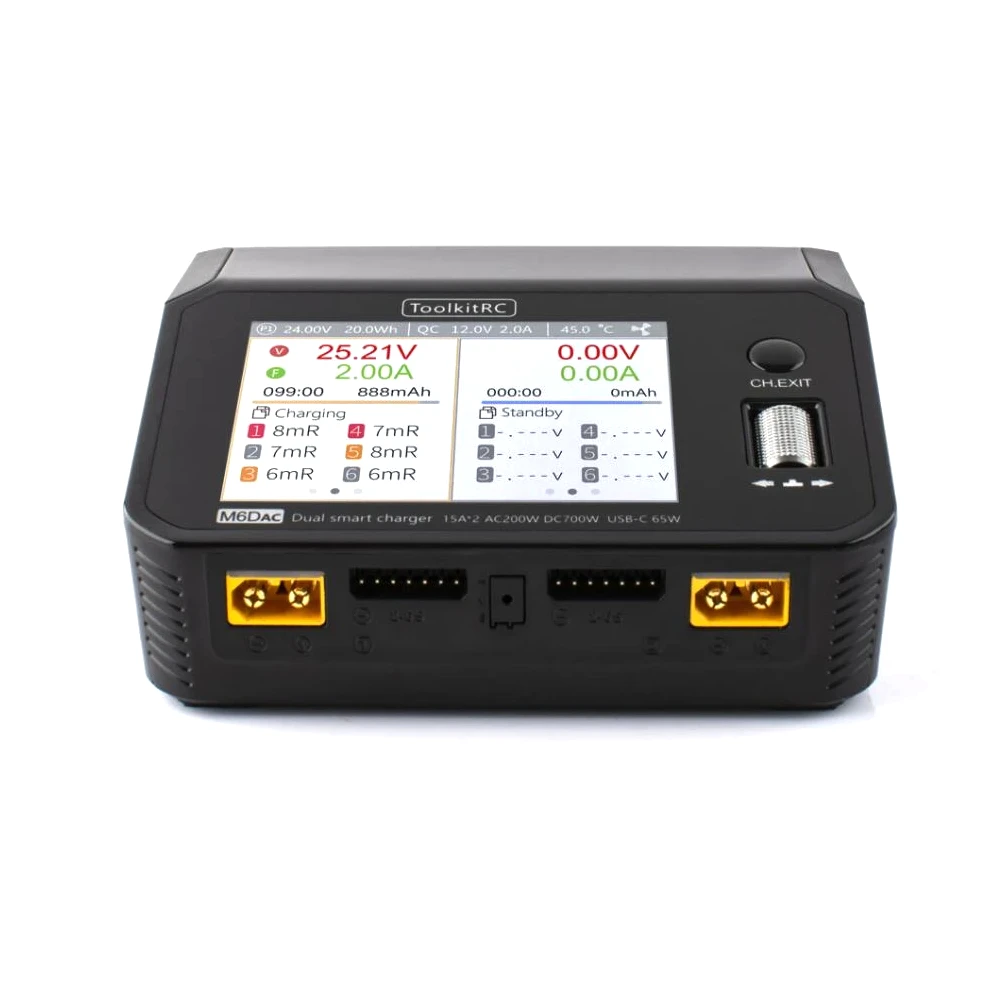

M6D AC Dual Charger

ToolkitRC’s new AC/DC 2 channel charger operates on an internal 200W AC power supply or up to 700W on DC power! A 65W Type-C interface supports fast charging of laptops, tablets, and other devices. Other features include a bright 3.5″ color display with a wide viewing angle, a metal scroll wheel, and the solid ToolkitRC build quality you expect!

Features

• Two independent charging channels
• Operates on internal 200W AC power supply or 7-28V DC power
• 65W USB-C fast charge port
• Metal Dial Wheel
• 3.5″ IPS Color Display

Specifications

• Input voltage: DC 7.0-28.0V  @MAX 30A | AC 100-240V @ MAX 2.5A
• Type of battery: Lipo  LiHV  LiFe Li-Ion @1-6S | NiMh @1-16S   Pb @1-10S
• Balance current: 1000mA @2-6S
• Balance accuracy: <0.005V
• Charger power: 0.1-15A @350Wx2  (Asynchronous mode) | 0.1-25A @700W  (Synchronous mode)
• Discharge power: 350W  @MAX 15Ax2（Recycle mode) | 15W@3A *2 (Normal mode)
• USBC power: MAX 65W 3.25A @20.0V  or Upgraded
• USBC protocol: PD,QC,AFC,FCP,SCP,PE,SFCP,VOC
• Battery voltage: 1.0V-5.0V@1-6S
• Internal resistance: 1-100mR@1-6S
• Product size: 127x106x57 mm
• Product weight:520g
• Pack size: 158x134x63 mm
• Pack weight: 700g
• LCD: IPS  3.5 inch LCD 480×320 Pixel

Includes

• 1x ToolkitRC M6DAC 200W 15A Dual Channel AC/DC Smart Charger
