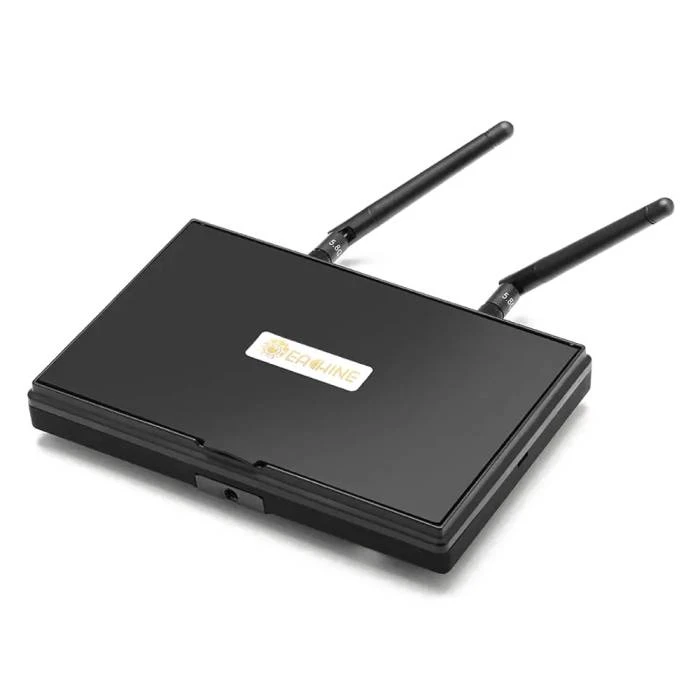

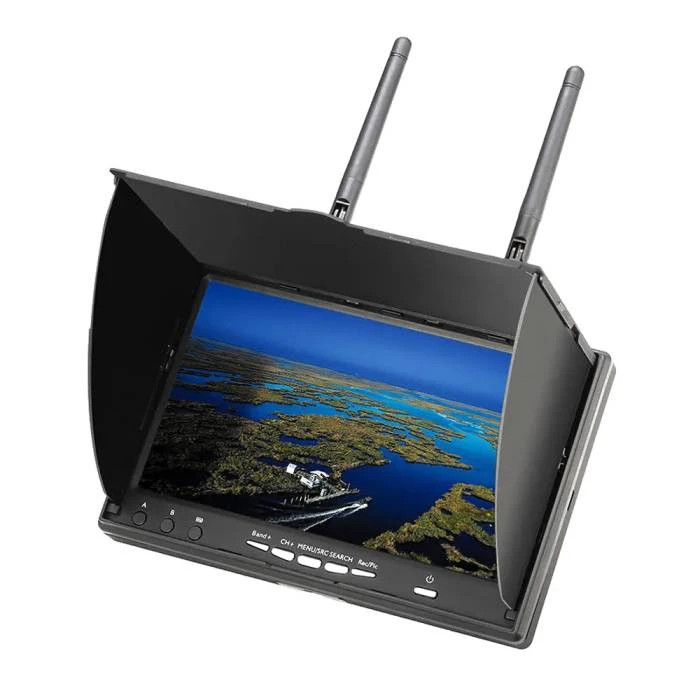

LCD5802D 7″ LCD FPV Monitor

 A super convenient analog LCD monitor with diversity receivers, internal battery, tripod mount & more!

Features

• Simple operation – A key to automatic signal search
• Built-in battery, easy to carry, great for outdoor use
• Built-in Dual Receiver for best reception
• Speakers allow headphone-free use
• 5 Bands and a total of 40 Channels
• No 2.4GHz R/C Radio interfference
• AV Receiver with Diversity inputs
• Small, lightweight, durable
• Work status OSD display
• Dual-buffered AV outputs
• DVR function

Specifications

• Receivers: Built-in 5.8Ghz Dual diversity receiver automatically for best reception
• Work status OSD display: RSSI indication, battery indicator; Channel indication
• Output/Input: Built-in 2CH 5.8Ghz AV output and 1CH AV input
• Screen type:TFT LCD Screen/long-life- LED backlight
• Antennas Connectors: RP-SMA male (inner hole)
• View Angle: 140/120degree (Horizontal/Vertical)
• Battery charging current : 850mA @12V (max)
• Connectors: RP-SMA female(outer needle)
• Memory: Support up to 32G, C10 SD Card
• Language: Supports Chinese and English
• Power Consumption: max 650 mA @12V
• Working temperature: -10℃~+ 65 ℃
• Battery: 7.4V 2000mAh (Built-in)
• Item Name: LCD5802D Monitor
• Size: 180mm x 120mm x 25mm
• Working Voltage: DC 7~16V
• Sunshield Height: 110mm
• Brand Name: Eachine
• Resolution: 800*480
• Frequency: 5.8GHz
• Format: JPEG, AVI
• Speakers: Yes
• Screen size:7”
• Channels: 40
• DVR: Yes
• Note: This device cannot receive 2 different channels at the same time.

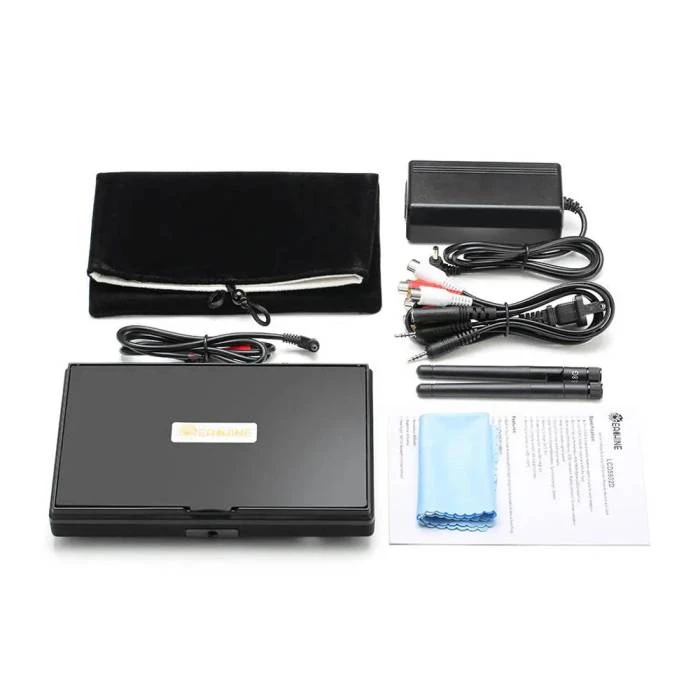

Includes

• 1x 7″ LCD Screen Receiver Monitor with built-in Rechargeable Battery
• 2x 5.8Ghz Antenna
• 1x AV Cable
• 1x Charger
