EV800D FPV Goggles

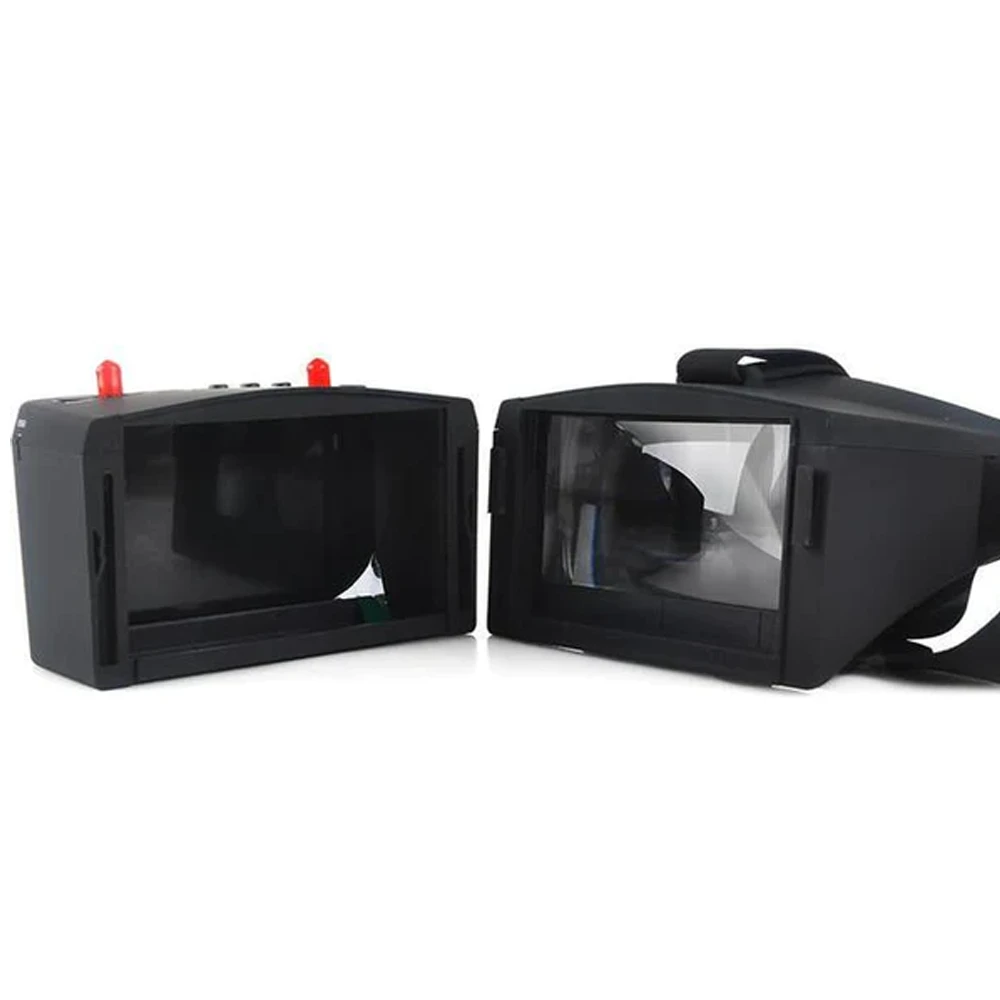

A great affordable entry-level analog FPV goggle with true diversity receivers and DVR. It also converts to a tripod-mountable FPV monitor by sliding the faceplate off!

Check out all our

FPV Goggles

!

Features

• With DVR, you can record videos anytime and anywhere;
• Low power consumption;
• Diversity module reception to make the signal more stable;
• Auto-Searching, supports a key search frequency;
• 5 Inch 800*480 dot high brightness LCD screen;
• Built-in super sensitiveness 5.8GHz 40ch receiver, especially with RaceBand;
• Built-in 7.4V/1430mAh high-capacity Li-ion polymer Battery;
• Universal DC055 charging interface;
• Real-time video return, Very low time delay;
• The menu supports 8 languages;
• Support external video signal input;
• Support Audio signal output (You can connect headphones)

Specifications

• LCD Screen Screen Size: 5″
• Resolution: 800×480
• Display Ratio: 16:9
• Brightness: 300cd/m² with high brightness backlight LED
• Video delay: >20ms
• Lens: 2.8X Fresnel Lens, 92% transparent rate no distort of light
• Antenna Connector: 2x RP-SMA male
• Charging Jack: DC055
• AV Jack External video signals input or internal Audio signal output
• Card slot TF-Card, Support up to 32G(C10 recommend)
• DVR REC size: VGA / D1 / HD Selectable
• REC sound: ON / OFF Selectable
• REC time: OFF / 3min / 5min / 10min Selectable
• Frame rate: 30 Frames
• Compress format: MJPEG
• Record file format: AVI
• Languages English, German, French, Spanish, Italian, Chinese, Russian, Japanese
• Power adapter: DC12V/2A (DC055 interface)
• Battery: 7.4V/1430mAh
• DVR module ON: Each full charge revives around 2.5hr working time
• DVR module OFF: Each full charge revives around 3.5hr working time
• Power Consumption:
• Normal mode: The device operating current of 400mA at 3.7V;
• Record mode: The device operating current of 620mA at 3.7V;
• Built-in battery maximum charge current of 800mA;

Includes

• 1x EV800D 5.8GHz Analog FPV Goggles
• 1x Patch Antenna
• 1x Omni Antenna
• 1x AV Cable
• 1x AC Adapter

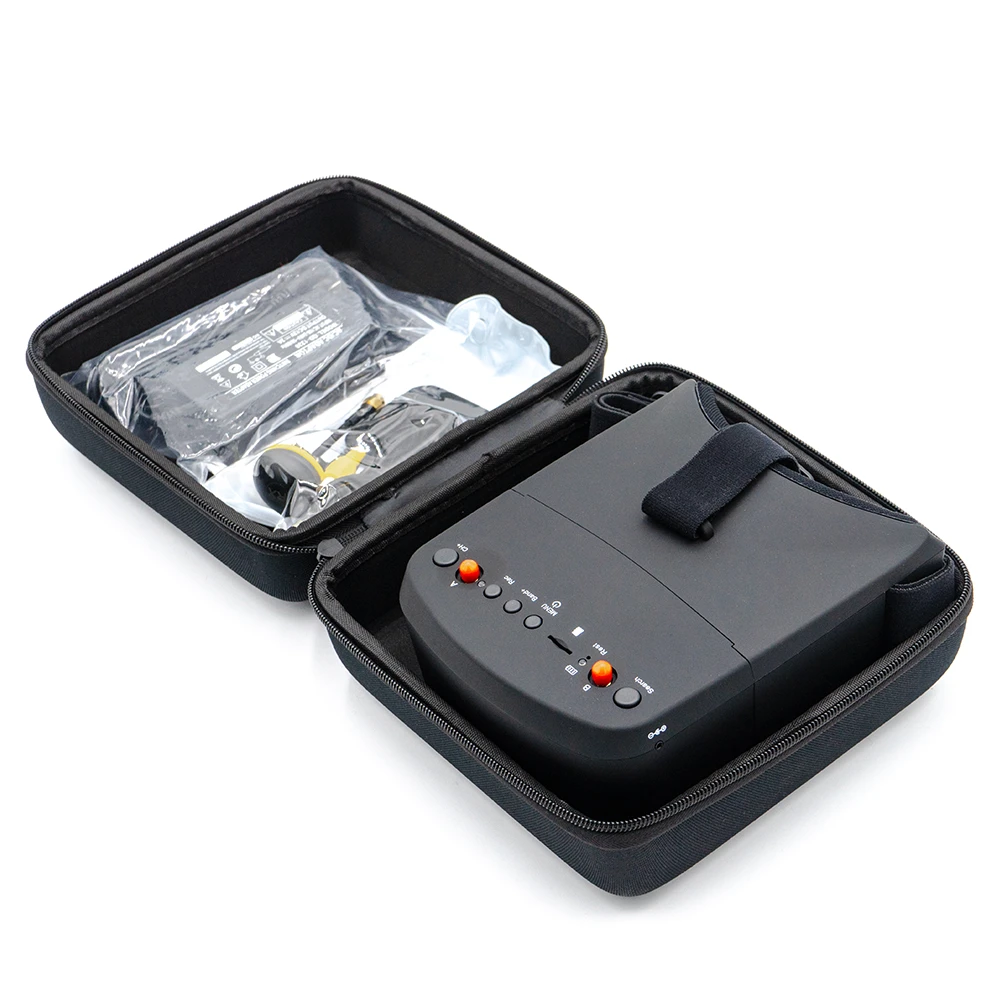

• 1x Zippered Carrying Case
