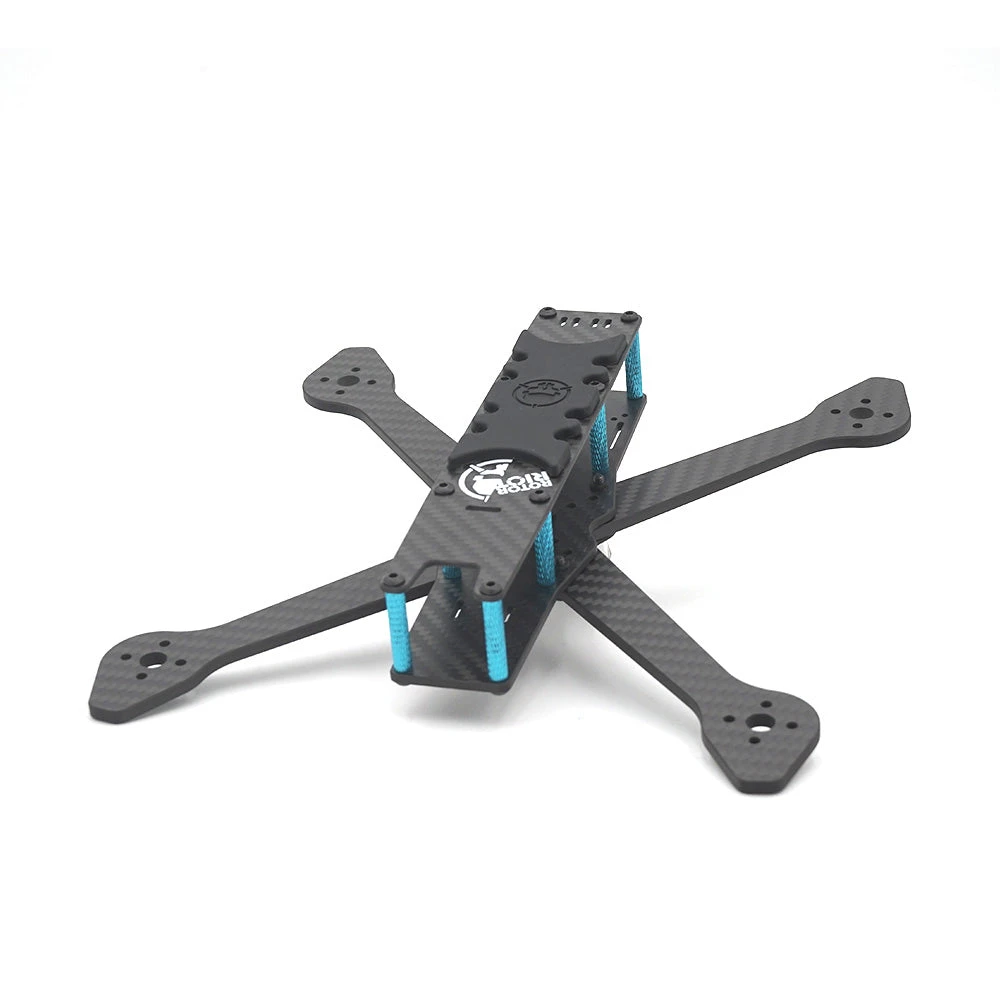

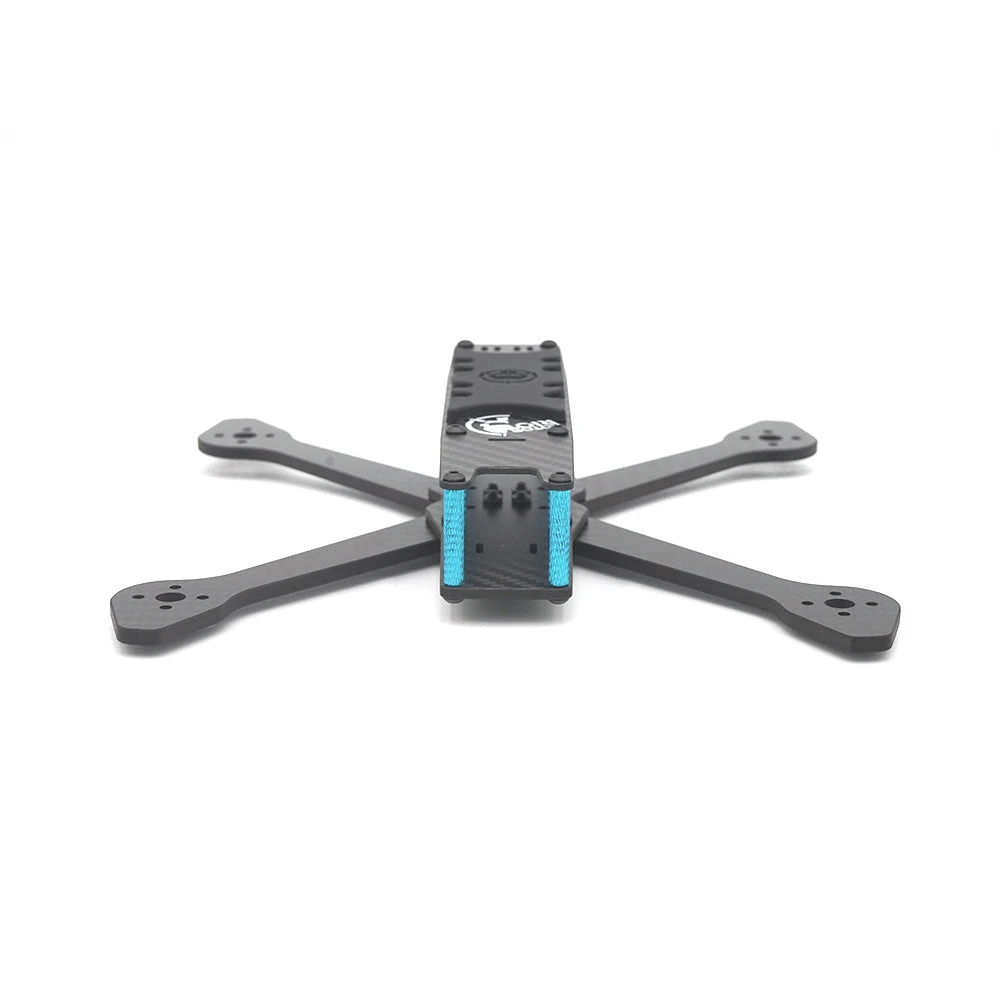

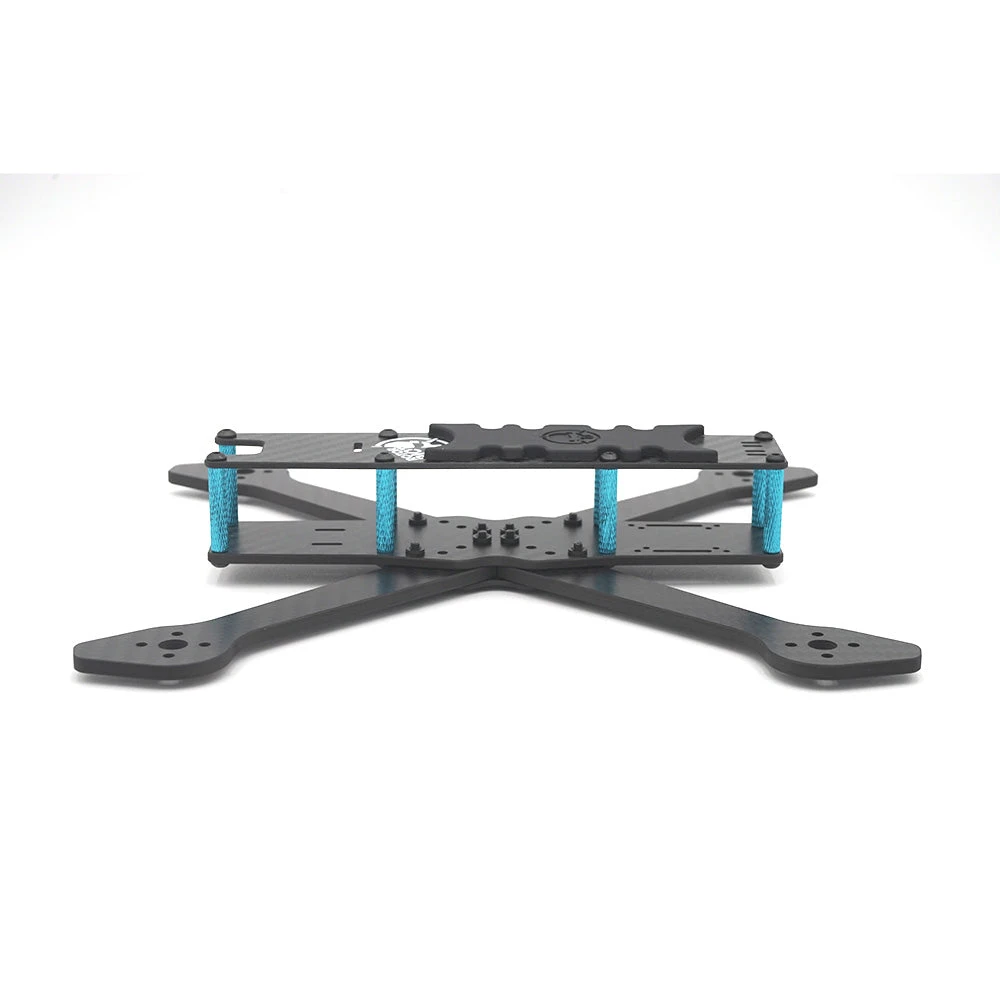

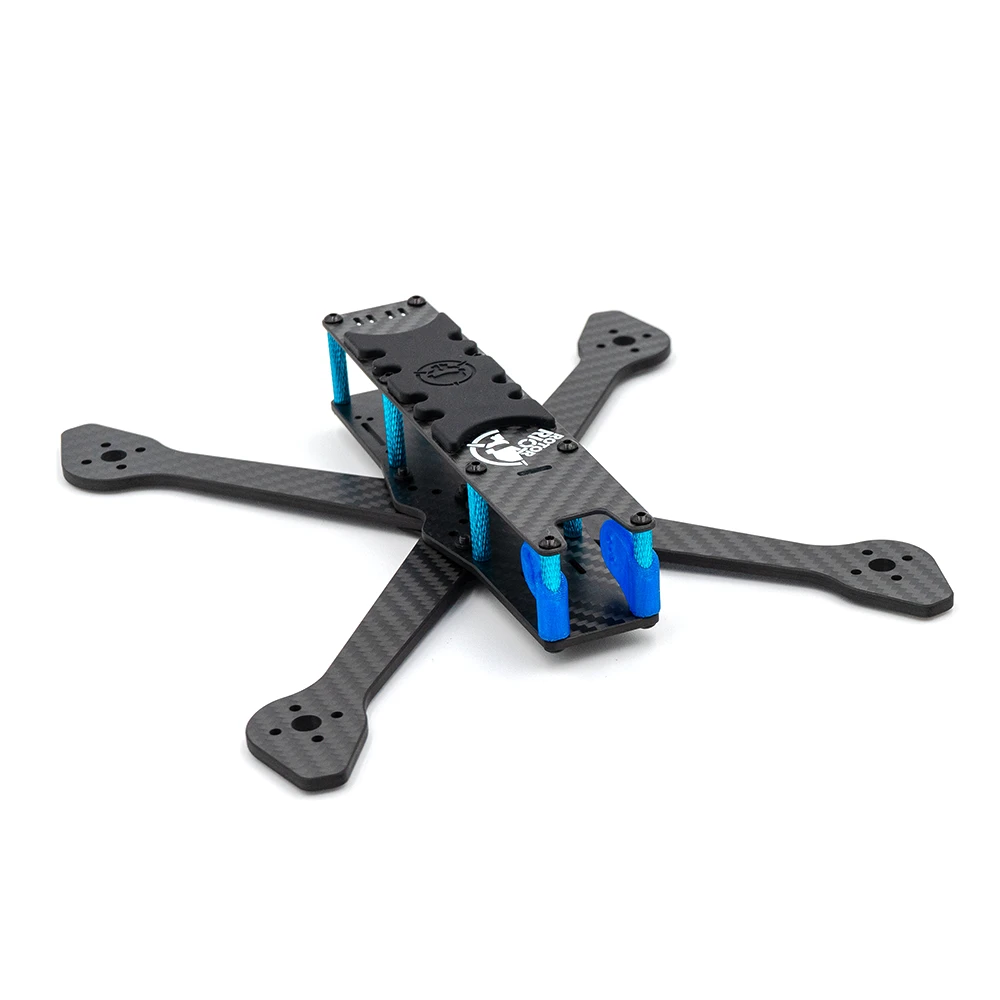

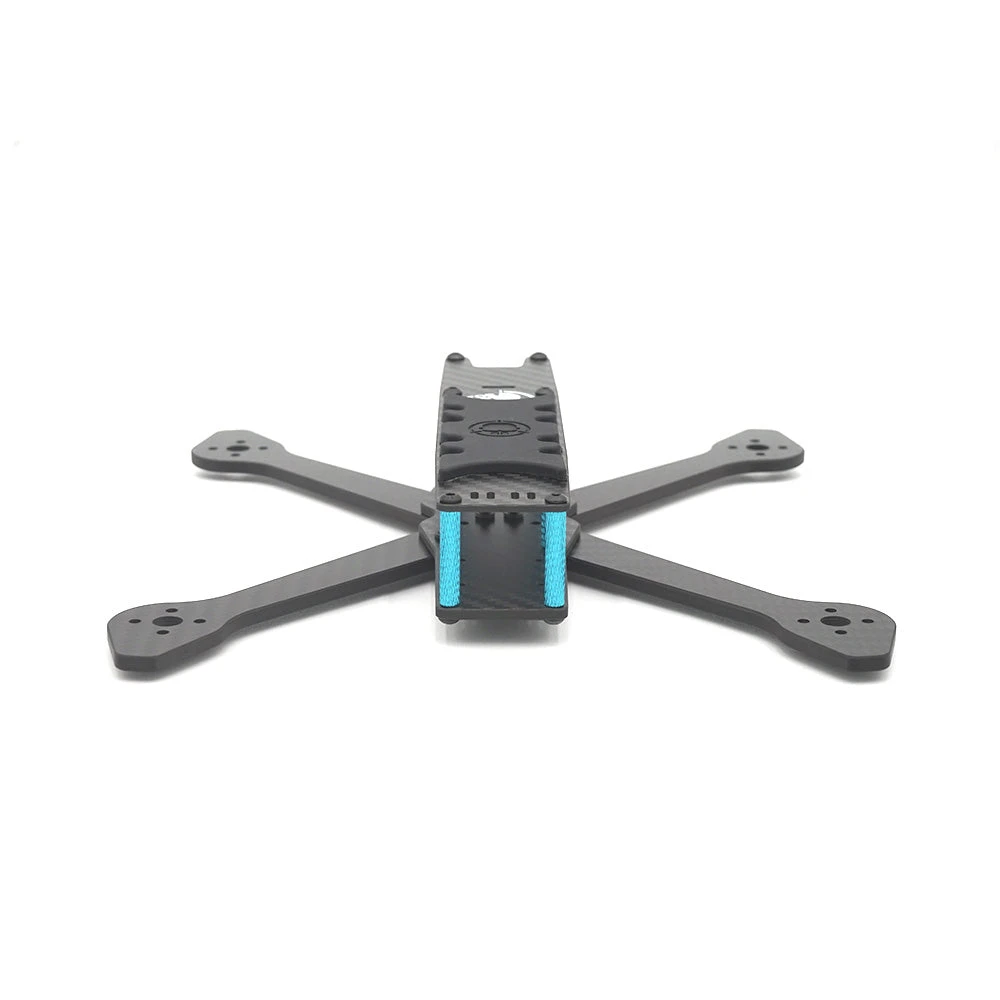

CL2 5″ Frame

The CL1 was a community lead frame that allowed pilots of all backgrounds come together and share in a fairly priced, full featured frame. Well as the FPV world advances, so does this frame. Now we have the CL2, ready to handle all of your 5″ needs.

Features

• Compatible with the Fatshark Dominator HD system
• Compatible with DJI HD systems
• Compatible with analog video systems
• 30×30 and 20×20 stack mounting
• 20×20 and 25×25 mounting in the rear
• Comes with all the screws we think you’ll need, from cameras to stacks

Specifications

• Wheelbase: 233mm
• Frame Style: True X
• Main Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Arm Thickness: 4mm
• Stack Size: 30x30mm / 20x20mm
• Rear Mounting: 20x20mm / 25x25mm
• Stack Height: 25mm
• Motor Mount: Φ16mm
• Camera Mount: Supports all FPV camera sizes
• Weight: 166g

Includes

• 1x Main Plate
• 1x Top Plate
• 1x Arm Brace
• 4x Arms
• 1x Hardware Set
• 8x 25mm M3 Standoffs
• 32x 9mm M3 Screws
• 8x 12mm M3 Screws
• 4x 25mm M3 Screws
• 8x M3 Press Nuts (Installed in frame)
• 4x 7mm M2 Screws
• 4x 18mm M2 Screws
• 8x M2 Nuts
• 1x 3D Printed Camera Mount Set
• 4x Kwad Skids
• 1x Battery pad
• 1x 250mm Battery Strap
• Does not include video or receiver antenna mounts
